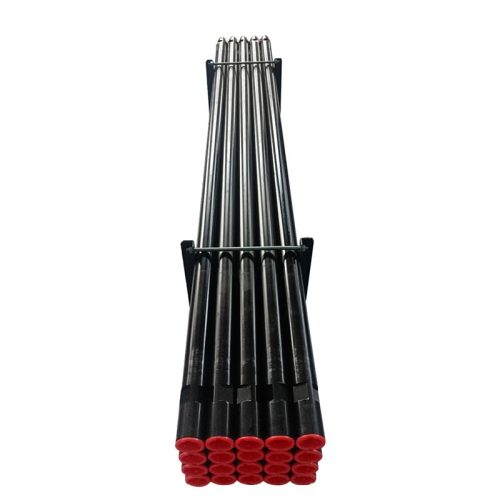

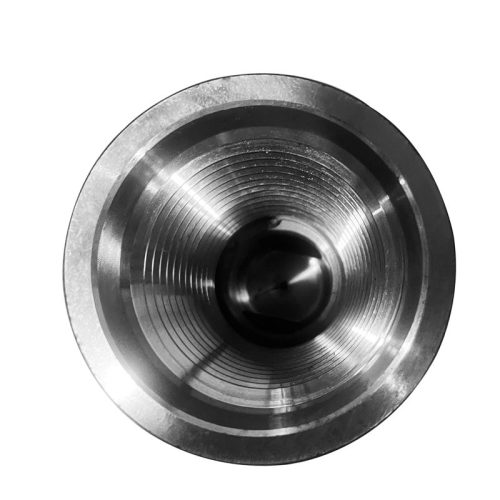

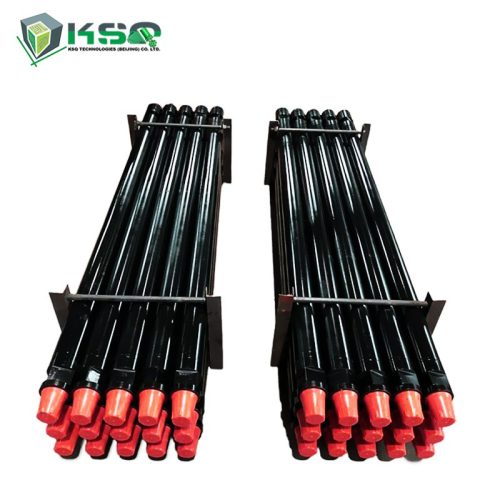

2 3/8″ 76mm DTH Drill pipe

2 3/8″ API Reg Drill Pipe Water Well Drill Pipe 76mm DTH Drilling Pipe for water well

Material	Alloy steel
Processing Type	Forging
Application	Mining / Quarrying / quarrying / Construction
Advantage	Good quality and lower price.
Color	Black or based on customer requirements.
MOQ	No MOQ required for testing and trial order
Length	1000mm-6000mm
Diameter	76mm 89mm 102mm 114mm 127mm 140mm
Certification	ISO

Product Description

DTH Drill rods that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel tube with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.

DTH drill rods are used for connecting DTH hammer and DTH button bits; they are made from seamless tubes. Rods play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH rod are durability, accuracy and manageability. According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice avers. Usually we are offering 50mm, 60mm, 76mm, 89mm, etc. ALL DTH drill rods are friction welded, and usually the threads are standard API connections,like23/8″ API REG thread, 3 1/2″ API REG thread or API IF thread, etc. According to customers request, from 1000mm to 5000mm length of rods are available.

Diameter	Thread	Thickness	Length	Wrench Flat	Weight
(mm)	Thread	(mm)	(mm)	(mm)	(kg)
76	2 3/8 API Reg	5.5	1000	57	17
76	2 3/8 API Reg	5.5	1500	57	22
76	2 3/8 API Reg	5.5	2000	57	26
76	2 3/8 API Reg	5.5	3000	57	35
76	2 3/8 API Reg	5.5	1000	65	17
76	2 3/8 API Reg	5.5	1500	65	22
76	2 3/8 API Reg	5.5	2000	65	26
76	2 3/8 API Reg	5.5	3000	65	35
76	2 3/8 API Reg	6.5	3000	65	46
76	2 3/8 API Reg	6.5	4500	65	56
76	2 3/8 API Reg	6.5	6000	65	73
89	2 3/8 API Reg	5.5	1000	65	20
89	2 3/8 API Reg	5.5	1500	65	25
89	2 3/8 API Reg	5.5	2000	65	30
89	2 3/8 API Reg	5.5	3000	65	40
89	2 3/8 API Reg	6.5	1000	65	21
89	2 3/8 API Reg	6.5	1500	65	26
89	2 3/8 API Reg	6.5	2000	65	32
89	2 3/8 API Reg	6.5	3000	65	45
89	2 3/8 API Reg	6.5	4500	65	65
89	2 3/8 API Reg	6.5	6000	65	84

Drill pipe quality control:

Before order to be confirmed, the raw material of pipe body and tool joint should be booked from famous big steel enterprises in China
Raw material’s size, quantity, length, mechanical property are checked by our QC staff and factory own laboratory
Every drill pipe has nondestructive inspection , cleaned and thread oil before packing.

Competitive Advantage

Very competitive price
Professinal service team and special after sale team
Fast response about all questions from clients
Design based on your specific requirements
Delivery on time
