Bench Drill Shank Adapter

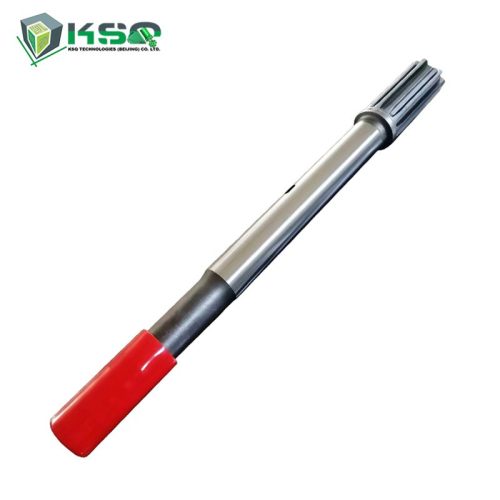

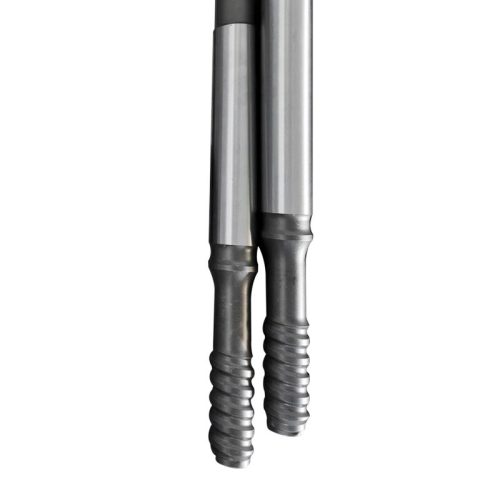

Bench Drill Shank Adapter Mining Machine Parts T45 620mm Furukawa HD609
| Material | Alloy Steel |
|---|---|
| Processing Type | Forging |
| Application | Mining / Quarrying / quarrying / Construction |
| Advantage | Lower unit drilling cost |
| Color | Black Or Customized |
| Rock drill brand | Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, others. |
| Thread size | R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST68, GT60 |
| Certification | ISO |
Product Description
Shank adapter is used for transmitting power between drill machine and drill stems. The power from drill machine is transmitted to drill bits. We are able to offer a comprehensive range of shank adapters for different rock drills.
Our shank adaptors ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.
| Furukawa SHANK ADAPTER | ||||||
| Furukawa HD 90 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| R38 | 40 | 515 | – | 4.3 | 414832528 | |
| Furukawa HD 190 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| R38 | 40 | 500 | – | 4.5 | 414832529 | |
| T38 | 40 | 500 | – | 4.5 | 414832530 | |
| Furukawa HD 300 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 654 | 16 | 6 | 414832531 | |
| T45 | 45 | 654 | 16 | 6.7 | 414832532 | |
| Furukawa HD 609 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 690 | – | 6.3 | 414832533 | |
| T45 | 45 | 690 | – | 6.4 | 414832534 | |
| Furukawa HD 612 RP | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T45 | 51 | 884 | – | 11.2 | 414832535 | |
| Furukawa PD200 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 485 | 14.3 | 5 | 414832536 | |
| T45 | 45 | 485 | 14.3 | 5.4 | 414832537 | |
Shank adapter order information:
Rock Drill Type + Thread + Diameter + Length
Example:
(1) Rock drill Type: Atlas Copco COP1440, COP1550, COP1838
(2) Thread: R32, T38, T45, T51
(3) Diameter: 52mm
(4) Length: 525mm
Competitive Advantage
- High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
- Accurate dimension of thread perfectly matches the rock drill
- Work reliable and very cost-effective
