Eccentric Casing System

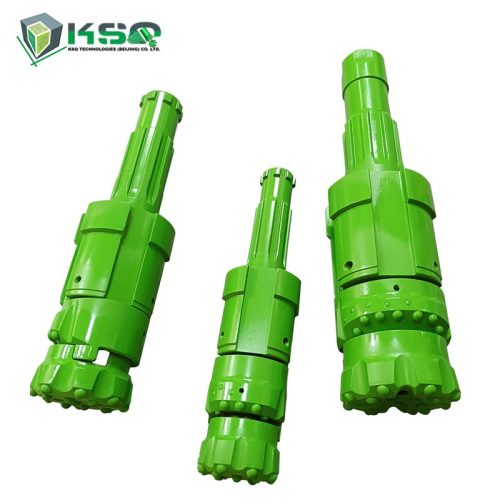

Eccentric Casing System Bit Link 3″~10″ Hammer ODEX System

Material	Carbon steel
Application	water well drilling
Advantage	Good quality and lower price.
Color	Green, Gold, Black or based on customer requirements.
Certification	ISO

Product Description

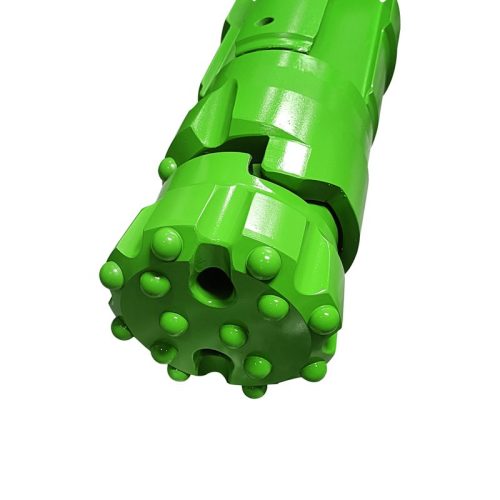

ODEX is an excellent option when unconsolidated formations are too dense or cobbly for Auger Drilling. ODEX is a down-hole air hammer system that is designed to advance casing during drilling. Once a desired depth is reached they eccentric bit can be retrieved leaving the casing in place for sampling or installations.

When the bore-hole is complete, the casing is retrieved to be used again.

Product code	OD(A) casing	ID(B) casing	Wall thickness	Reamed Dia (C)	ID(D) casing Shoe	Maxdia. of Pilot bit	Hammer	Drill pipe
108-HD35-84	108	96	6	118	86	84	DHD3.5 QL30	76
114-HD35-90	114	102	6	123	92	90	DHD3.5 QL30	76
127-HD45-115	127	109	9	138	99	97	DHD340A QL40	76
140-HD55-115	140	128	6	152	117	115	DHD340A QL40	76
168-HD55-140	168	156	6	185	142	140	DHD350R QL50	76/89
178-HD55-146	178	156	10	195	148	146	DHD350R QL50	76/89
183-HD55-150	183	163	10	200	152	150	DHD350R QL50	76/89
194-HD65-165	194	180	7	209	167	165	DHD360 QL60	89/114
219-HD65-190	219	205	7	237	192	190	DHD360 QL60	89/114
245-HD85-208	245	225	10	264	210	208	DHD380 QL80	114
273-HD85-240	273	259	7	308	242	240	DHD380 QL80	114
323-HN110-280	323	303	10	358	282	275	NUMA100 SD10	114

Competitive Advantage

Very competitive price
Professinal service team and special after sale team
Fast response about all questions from clients
Design based on your specific requirements
Delivery on time

Get a quote

Frequently Asked Questions

Q：Are you manufacturery or trade company?

A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.

Q: Do you offer warranty on your products?

A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.

Q: How is your quality control?

A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.

Q: How long is your delivery time?

A: 1-5days for the products in stock； regular order delivery in 2-3weeks.

Q: After Services

A:(1) Our sales team will response for your question within 24 hours (Holidays included).

(2) Technical Support will be available in any time.

(3)Free replacement will provide once the failure confirmed caused by our product quality.

Q:Methods of Payment

A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.

Q: Do you offer OEM service?

A:Yes, we can offer OEM service if you have regular requirement.

Q: Where did you export ?

A:Till 2022 we have exported to 50+ countries.
