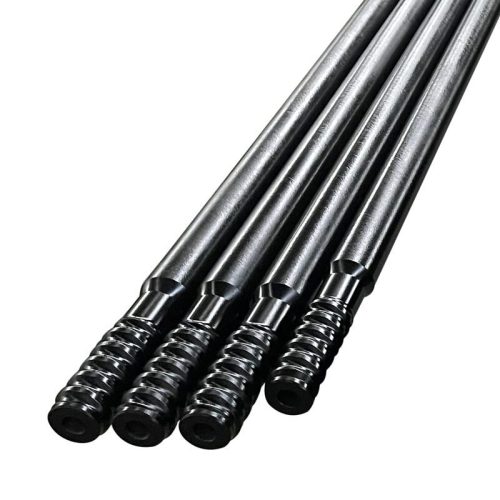

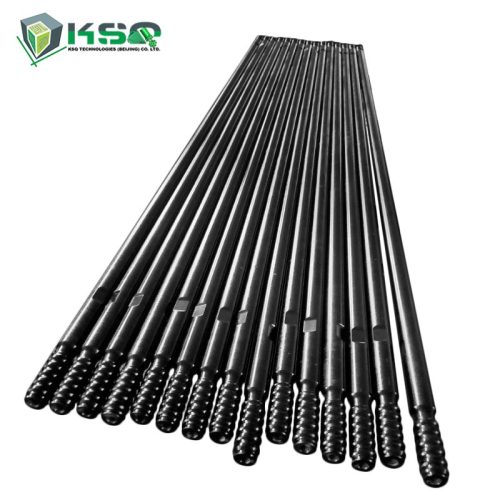

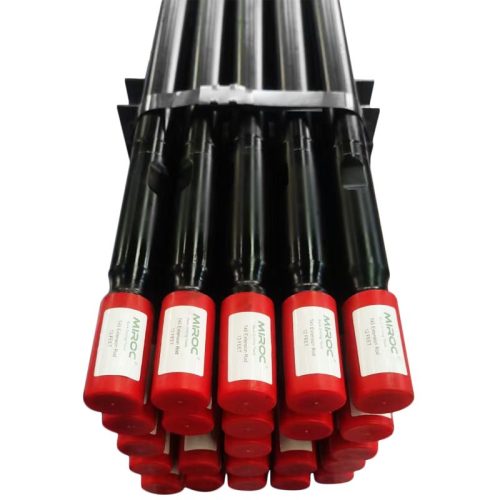

Extension Rod
Hard rock drilling T51 610mm to 6400mm Thread Extension Drill Rod
| Material | Alloy steel |
|---|---|
| Processing Type | Forging |
| Application | Mining / Quarrying / quarrying / Construction |
| Advantage | Good quality and lower price. |
| Color | Black or based on customer requirements. |
| MOQ | No MOQ required for testing and trial order |
| Body Type | Round shape and hexagonal type |
| Thread type | R25,R28,R32,R38,T38,T45,T51 |
| Type | Thread extention Rod and MF rod |
| Length | 600mm-6400mm |
| Certification | ISO |
Product Description
Our rod using thread system. Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system.
It is well known that the performance of the material could be played well only after going through heat treatment to release its maximum potential, therefore, the choice of material and heat treatment process are important on an equal basis.
| Drill Rod | Length | Diameter | Weight, kg | ||
| mm | Inch | mm | inch | ||
| Extension RodT45 – Round46 – T45 | 1830 | 6’ | 46 | 1 ¾ | 21.6 |
| 2435 | 8’ | 46 | 1 ¾ | 28.3 | |
| 3050 | 10’ | 46 | 1 ¾ | 35.2 | |
| 3660 | 12’ | 46 | 1 ¾ | 42.1 | |
| 4270 | 14’ | 46 | 1 ¾ | 48.9 | |
| 5530 | 18’ | 46 | 1 ¾ | 63 | |
| 6095 | 20’ | 46 | 1 ¾ | 69.3 | |
Features:
- High-grade raw material
- Manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment
- High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Competitive Advantage
- Very competitive price
- Professinal service team and special after sale team
- Fast response about all questions from clients
- Design based on your specific requirements
- Delivery on time
Get a quote
Frequently Asked Questions
Q：Are you manufacturery or trade company?
A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.
Q: Do you offer warranty on your products?
A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
Q: How is your quality control?
A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.
Q: How long is your delivery time?
A: 1-5days for the products in stock； regular order delivery in 2-3weeks.
Q: After Services
A:(1) Our sales team will response for your question within 24 hours (Holidays included).
(2) Technical Support will be available in any time.
(3)Free replacement will provide once the failure confirmed caused by our product quality.
Q:Methods of Payment
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.
Q: Do you offer OEM service?
A:Yes, we can offer OEM service if you have regular requirement.
Q: Where did you export ?
A:Till 2022 we have exported to 50+ countries.
