Impregnated Diamond Core Drill Bit

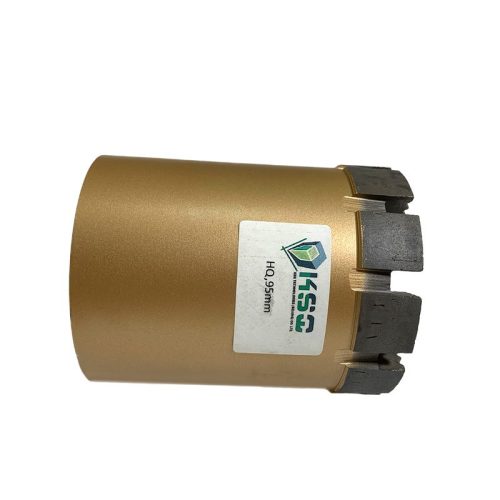

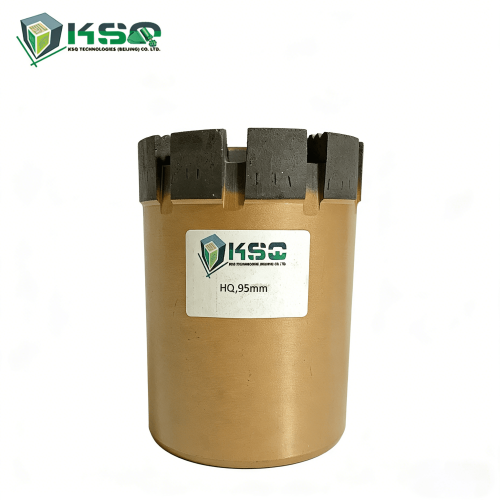

AQ BQ NQ HQ PQ Impregnated Diamond Core Drill Bit

Material	Tungsten Carbide And Alloy Steel
rock formation	soft, mediom and hard
Application	Mineral Exploration Industry
Advantage	Good quality and lower price.
Color	Any Color Is Available
Certification	ISO

Product Description

The impregnated diamond bits have the widest range of application. They are the most commonly useful bits from medium to super hard formations in the mineral exploration industry.

Toothed bits can get higher drilling efficiency when it is drilling at dense or abrasive stratum with lower drilling speed and pressure. It was especially effective at coal formation, using toothed bits can get better water flowing and drilling footage effect. Nowadays, the impregnated diamond bits have been widely used in wire-line drillinng series.

Size: 46~325mm diamond core drill bits with national and international standard

Double tube surface
PQ HQ NQ BQ AQ Wire-line Impregnated Diamond Core Drill Bit	Matric system(mm)		Imperial system( in )
Size( surface exploration drill	Hole diameter	Core diameter	Hole diameter	Core diameter
BQ	60	36.4	2.36	1.43
NQ	75.7	47.6	2.98	1.88
HQ	96.1	63.5	3.78	2.5
PQ	122.7	85	4.83	3.34
Triple tube surface
NQ3	75.7	45	2.98	1.78
HQ3	96.1	61.1	3.78	2.41
PQ3	122.7	83	4.83	3.27

Diamond Bits Crown Shape and Applications
Image	Shape Type	Applications & Characteristics

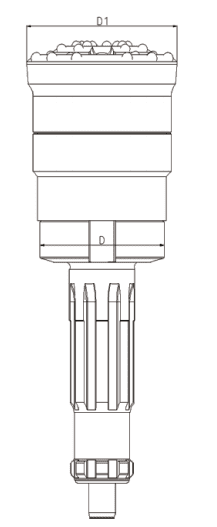

	Flat	Applicable to drilling different levels of hardness or abrasive formation, generally for single and dual tube drill bits.
	Semi-round	Good distribution of the diamond at bit face, adapt to a small broken or loose formation, applicable to drilling medium-hard and hard formation.
	Ladder	Applicable to drilling medium-hard, broken or interbedded formations, hole deviation can be prevented.
	Serrated	Applicable to drilling hard and dense formation, enhancing drilling rate.
	Ladder Serrated	Applicable to drilling medium-hard formations, have good stability during the drilling.
	Gear Type	Applicable to harder or dense formations, enhancing drilling rate.
	Bottom Jetting	Applicable to drilling sedimentary or metamorphic formations which contain more power, high coring recovery rate and avoid excessive washout of core.

Series Explanation

“Q” series: AQ, BQ, NQ, HQ, PQ, SQ,BQ3, NQ3, HQ3, PQ3,
“TW” series: BTW, NTW,
“TT” series: NQTT, HQTT,PQTT

Competitive Advantage

Very competitive price
Professinal service team and special after sale team
Fast response about all questions from clients
Design based on your specific requirements
Delivery on time

Get a quote

Frequently Asked Questions

Q：Are you manufacturery or trade company?

A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.

Q: Do you offer warranty on your products?

A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.

Q: How is your quality control?

A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.

Q: How long is your delivery time?

A: 1-5days for the products in stock； regular order delivery in 2-3weeks.

Q: After Services

A:(1) Our sales team will response for your question within 24 hours (Holidays included).

(2) Technical Support will be available in any time.

(3)Free replacement will provide once the failure confirmed caused by our product quality.

Q:Methods of Payment

A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.

Q: Do you offer OEM service?

A:Yes, we can offer OEM service if you have regular requirement.

Q: Where did you export ?

A:Till 2022 we have exported to 50+ countries.
