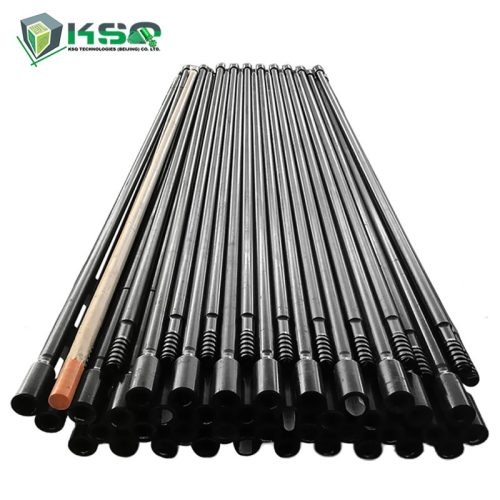

MF Rod
T38 T45 T51 Drill Rod Threaded Round MF Rod 10 Feet Long For bench Drilling
| Material | Alloy steel |
|---|---|
| Processing Type | Forging |
| Application | Mining / Quarrying / quarrying / Construction |
| Advantage | Good quality and lower price. |
| Color | Black or based on customer requirements. |
| MOQ | No MOQ required for testing and trial order |
| Body Type | Round shape and hexagonal type |
| Thread type | R25,R28,R32,R38,T38,T45,T51 |
| Type | Thread extention Rod and MF rod |
| Length | 600mm-6400mm |
| Certification | ISO |
Product Description

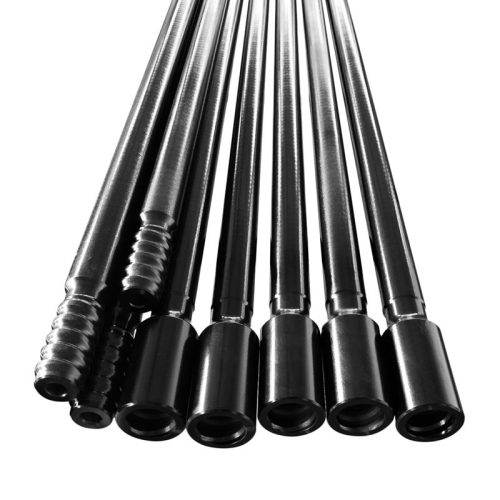

Male/Male rod,Male/Female(M/F)Rod-Speed rod M/F drill steel is an alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/Fdrill steel provides more rigid connection sandiseasier toun couple and handle. The service life also tends to be better than with separate couplings.
For Extension Rod and M/F steel process, the below two different types of heat treatment are used to strengthen high speed and powerful percussive drill string components to maximize their performance and reliability.-Cannibalization is a process used to harden the entire rod surface both internally and externally to strengthen and extend the life of the rod. – High Frequency Induction is a process where only the thread ends of the rod are hardened to lengthen thread life.
| Drill rod | Length | Diameter | Weight | Part Number | |||
| mm | foot | mm | inch | kg | |||
| T38 MF-rod, T38-Round39-T38 Flushing hole 14.5mm | 915 | 3 | 39 | 1 1/2 | 10.7 | 4148300781 | |
| 1220 | 4 | 39 | 1 1/2 | 13.3 | 4148300782 | ||
| 1525 | 5 | 39 | 1 1/2 | 15.8 | 4148300783 | ||
| 1830 | 6 | 39 | 1 1/2 | 18.3 | 4148300784 | ||
| 3050 | 10 | 39 | 1 1/2 | 28.5 | 4148300785 | ||
| 3660 | 12 | 39 | 1 1/2 | 33.6 | 4148300786 | ||
| 4270 | 14 | 39 | 1 1/2 | 38.7 | 4148300787 | ||
| 4880 | 16 | 39 | 1 1/2 | 43.7 | 4148300788 | ||
| 5530 | 18 1/7 | 39 | 1 1/2 | 49.2 | 4148300789 | ||
| 6095 | 20 | 39 | 1 1/2 | 53.9 | 4148300790 | ||
