RC543 DTH Drill Bits

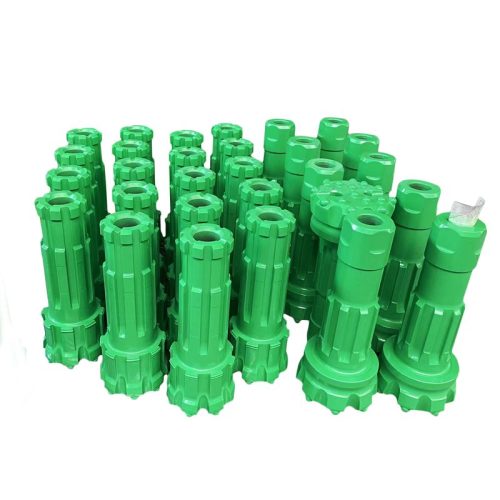

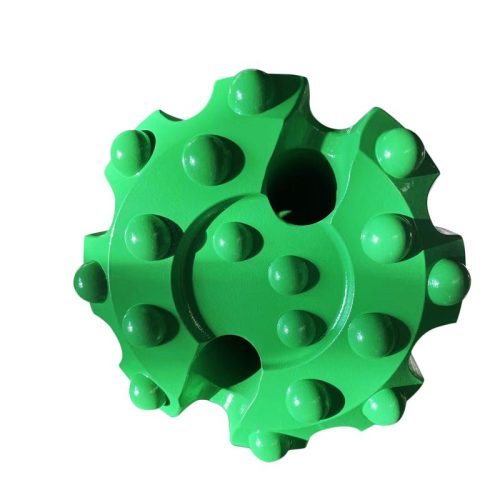

RC543 Reverse Circulation DTH Drill Bits For Deep Exploration Drilling

Material	Tungsten Carbide And High Strength Alloy Steel
Series	CIR, BR, COP,DHD,MISSION,QL,SD,NUMA
Application	Quarrying,Construction,Civil engineering,Mining
Advantage	Good quality and lower price.
Color	Green, Gold, Black or based on customer requirements.
Button bit shape	Spherical, Ballistic,Conical
Face shape	flat face, concave, convex, etc.
Certification	ISO

Product Description

RC series reverse circulation DTH Hammer is the latest developed product of our company. It is mainly used for deep exploration drilling and ore grade control.

It has the following characteristics:
1. Based on previous experience of ordinary hammers, combined with the features of recerse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers deilling with fast smooth and continuous sampling.
2. The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.
3. The collection tube adopts an intergrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.
4. Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.
5. In difficult condition such as loose soil, hard rock and plenty of water exists, sampling can be done well.

DTH Hammer Type		HRC45	HRC55	HRC65	HRC52	RC542	RC543	RC545	RC547
Length (less bit)	mm	1020	1111	1250	1208	1191	1191	1261	1270
Weight (excluding bit)	kg	94	66.5	110	70	57	62	65	71
External diameter	mm	99	126	146	126	109.5	116	117.5	124.5
Bit shank		HRC45	HRC55	HRC65	PR52	RE542	RE542	RE545	RE547
Hole range	mm	114-127	133-152	155-190	133-146	113-130	120-135	122-135	130-146
Connection thread		upon the thread of the drill tube				3.5″-4″ remet		4″-4.5″ remet	4.5″ remet
Connection thread		upon the thread of the drill tube				4″ metzke		4″-4.5″ metzke	4.5″ metzke
working pressure	Mpa	1.0-3.0	1.5-3.5	1.5-3.5	1.5-3.5	1.5-3.5	1.5-3.5	1.5-3.5	1.5-3.5
Impact rate at 1.7 Mpa	HZ	30	35	28	35	35	35	35	35
Recommended Rotation Speed	r/min	25-40	25-40	25-40	25-40	25-40	25-40	25-40	25-40
Air consumption (m3/min	1.0 Mpa	8	16	20	16	12	12	16	16
	1.8Mpa	12	22	26	22	18	18	22	22
	2.4Mpa	16	28	35	28	26	26	28	28

Competitive Advantage

Very competitive price
Professinal service team and special after sale team
Fast response about all questions from clients
Design based on your specific requirements
Delivery on time

Get a quote

Frequently Asked Questions

Q：Are you manufacturery or trade company?

A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.

Q: Do you offer warranty on your products?

A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.

Q: How is your quality control?

A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.

Q: How long is your delivery time?

A: 1-5days for the products in stock； regular order delivery in 2-3weeks.

Q: After Services

A:(1) Our sales team will response for your question within 24 hours (Holidays included).

(2) Technical Support will be available in any time.

(3)Free replacement will provide once the failure confirmed caused by our product quality.

Q:Methods of Payment

A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.

Q: Do you offer OEM service?

A:Yes, we can offer OEM service if you have regular requirement.

Q: Where did you export ?

A:Till 2022 we have exported to 50+ countries.
