Striking Bar Shank Adapter

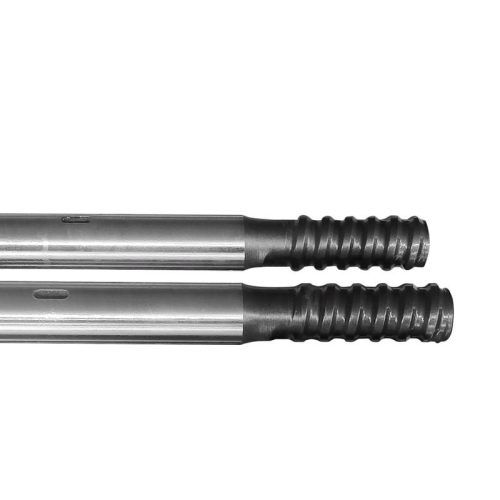

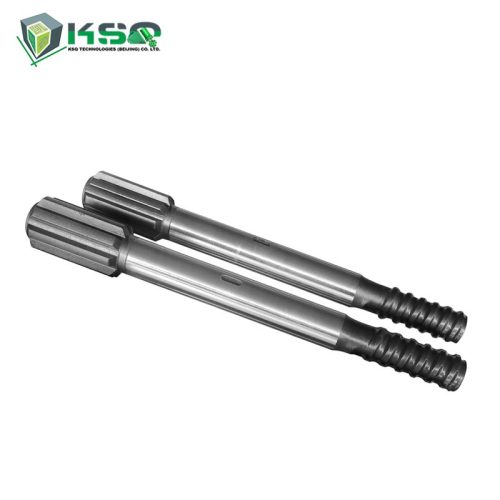

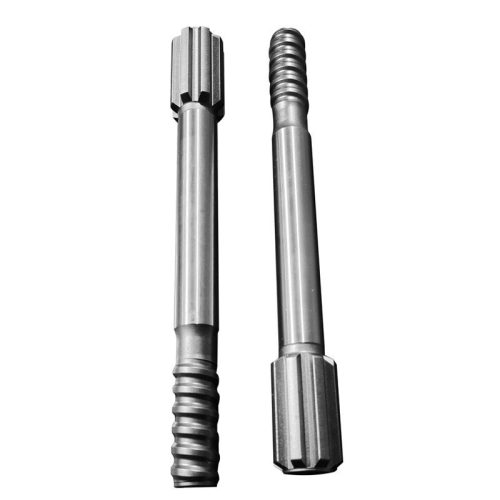

Cop1838 T38-435mm Top Hammer Drilling Striking Bar Shank Adapter

Material	Alloy Steel
Processing Type	Forging
Application	Mining / Quarrying / quarrying / Construction
Advantage	Lower unit drilling cost
Color	Black Or Customized
Rock drill brand	Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, others.
Thread size	R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST68, GT60
Certification	ISO

Product Description

Shank adapter is used for transmitting power between drill machine and drill stems. The power from drill machine is transmitted to drill bits. We are able to offer a comprehensive range of shank adapters for different rock drills.

Our shank adaptors ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.

Item	Thread	Length (mm)	Diameter (mm)	Weight (kg)	Flushing Tube (mm)	Part Number
Atlas Copco COP 1440, COP1838 Bolting - SDA	R32 (1 1/4")	640	52	7.5	-	414832451
Atlas Copco COP 1440, COP1838 Bolting - SDA	R32 (1 1/4")	640	52	7.5	-	414832451
Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA	R32 (1 1/4")	640	52	9.1	-	414832452
Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA	R38 (1 1/2")	640	52	8.9	-	414832453
Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling	R32 (1 1/4")	525	52	5.7	-	414832454
	T38 (1 1/2")	525	52	5.9	-	414832455
	T45 (1 3/4")	525	52	6.1	-	414832456
	T51 (2")	525	52	6.5	-	414832457
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting	R32 (1 1/4")	435	38	3.6	-	414832458
	R38 (1 1/2")	435	38	3.9	-	414832459
	T38 (1 1/2")	435	38	3.8	-	414832460
Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting	T38 (1 1/2")	435	38	3.9	-	414832461
	T38 (1 1/2")	435	38	3.9	-	414832461
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting	R32 (1 1/4")	585	38	4.2	-	414832462
	R38 (1 1/2")	525	38	4.3	-	414832463
	T38 (1 1/2")	525	38	4.3	-	414832464
Atlas Copco COP 1638, COP 1838AW Drifting	R38 (1 1/2")	455	38	4.1	-	414832465
Atlas Copco COP 1638, COP 1838AW Drifting	T38 (1 1/2")	455	38	4.1	-	414832466
Atlas Copco COP 1638, COP 1838AW Longhole Drilling	R32 (1 1/4")	525	38	4.3	-	414832467
Atlas Copco COP 1638, COP 1838AW Longhole Drilling	T38 (1 1/2")	525	38	4.5	-	414832468
Atlas Copco COP 1640 Bench Drilling	T38 (1 1/2")	565	52	6.6	-	414832469
Atlas Copco COP 1640 Bench Drilling	T38 (1 1/2")	565	52	6.6	-	414832469
Atlas Copco COP 1640EX Bench Drilling	T38 (1 1/2")	770	60	10.7	-	414832470
Atlas Copco COP 1640EX Bench Drilling	T38 (1 1/2")	770	60	10.7	-	414832470
Atlas Copco COP 1838EX Bench Drilling	T38 (1 1/2")	730	60	9.8	-	414832471
	T45 (1 3/4")	730	60	10.2	-	414832472
	T51 (2")	730	60	10.4	-	414832473
Atlas Copco COP 1838MUX/HUX Bench Drilling	T38 (1 1/2")	730	52	9.9	-	414832474
Atlas Copco COP 1838MUX/HUX Bench Drilling	T45 (1 3/4")	730	52	9.9	-	414832475
Atlas Copco COP 1838MUX/HUX Production Drilling	T38 (1 1/2")	730	52	9.6	-	414832476
Atlas Copco COP 1838MUX/HUX Production Drilling	T45 (1 3/4")	730	52	9.9	-	414832477

Shank adapter order information:

Rock Drill Type + Thread + Diameter + Length
Example:
(1) Rock drill Type: Atlas Copco COP1440, COP1550, COP1838
(2) Thread: R32, T38, T45, T51
(3) Diameter: 52mm
(4) Length: 525mm

Competitive Advantage

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Accurate dimension of thread perfectly matches the rock drill
Work reliable and very cost-effective
