T38-64mm Thread Button Bit

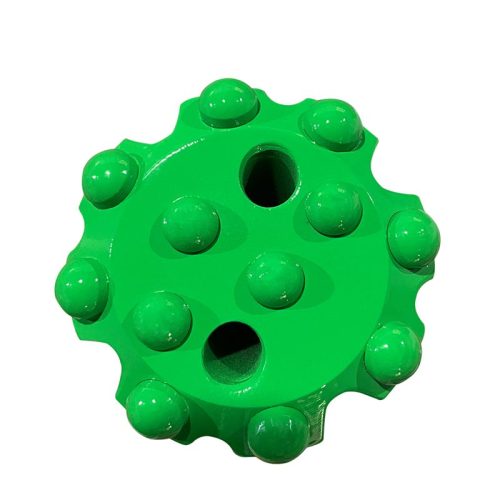

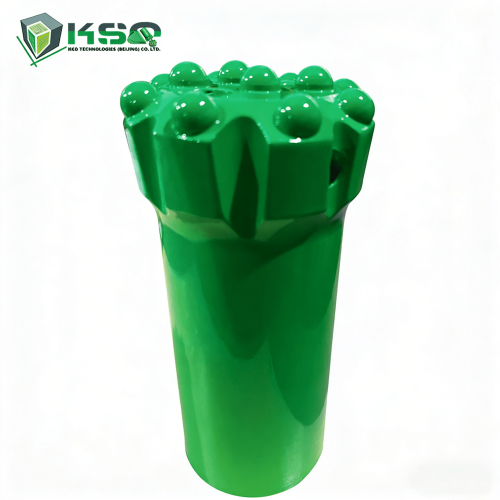

T38 64mm 76mm Hard Rock Drilling Bits Thread Button Drill Bits
| Material | High strength alloy steel and tungsten carbide |
|---|---|
| Processing Type | Forging |
| Application | Mining / Quarrying / quarrying / Construction |
| Advantage | Good quality and lower price. |
| Color | Green, Gold, Black or based on customer requirements. |
| Formation | Soft , Medium , Hard , Very hard |
| Button bit shape | Spherical, Ballistic,Conical |
| Thread connection | R25, R28, R32, R38, T38, T45, T51, ST58, GT60 |
| Certification | ISO |
Product Description
The thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Rock Drill Thread Button Bits is suitable for R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 rock drill rods use. It have many thread. It’s widely used for hard rock(f=8~18) drilling use.
| T38 Thread Button Bit Specification | ||||||||
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | kg | |
| Spherical | ||||||||
| 64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | – | 1.8 | 4148300705 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | – | 1.6 | 4148300706 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | – | 1.7 | 4148300707 |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | – | 1.9 | 4148300708 |
| 70 | 2 3/4 | 4×10, 1×10 | 8×11 | 30° | 4 | – | 1.9 | 4148300709 |
| 70 | 2 3/4 | 3×10, 1×10 | 6×12 | 35° | 3 | – | 1.8 | 4148300710 |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | – | 2.4 | 4148300711 |
| 76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | 4148300712 |
| 76 | 3 | 3×11, 1×11 | 6×12 | 35° | 3 | 1 | 2.6 | 4148300713 |
| 76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | – | 2.6 | 4148300714 |
| 76 | 3 | 4×11, 1×11 | 8×11 | 40° | 4 | – | 2.6 | 4148300715 |
| 89 | 3 1/2 | 4×13 | 8×13 | 40° | 2 | – | 3.3 | 4148300716 |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | – | 3.3 | 4148300717 |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | – | 3.3 | 4148300718 |
| 89 | 3 1/2 | 3×11, 2×11 | 6×13 | 35° | 3 | 1 | 3.3 | 4148300719 |
| 89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | – | 3.3 | 4148300720 |
| 89 | 3 1/2 | 4×13, 1×13 | 8×13 | 35° | 4 | – | 3.3 | 4148300721 |
| Ballistic | ||||||||
| 64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | – | 1.8 | 4148300722 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | – | 1.6 | 4148300723 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | – | 1.7 | 4148300724 |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | – | 1.9 | 4148300725 |
| 70 | 2 3/4 | 4×10, 1×10 | 8×11 | 30° | 4 | – | 1.9 | 4148300726 |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | – | 2.4 | 4148300727 |
| 76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | 4148300728 |
| 76 | 3 | 3×11, 1×11 | 6×12 | 35° | 3 | 1 | 2.6 | 4148300729 |
| 76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | – | 2.6 | 4148300730 |
| 76 | 3 | 4×11, 1×11 | 8×11 | 40° | 4 | – | 2.6 | 4148300731 |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | – | 3.3 | 4148300732 |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | – | 3.3 | 4148300733 |
| 89 | 3 1/2 | 3×11, 2×11 | 6×13 | 35° | 3 | 1 | 3.3 | 4148300734 |
| 89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | – | 3.3 | 4148300735 |
| 89 | 3 1/2 | 4×13, 1×13 | 8×13 | 35° | 4 | – | 3.3 | 4148300736 |
Competitive Advantage
- Very competitive price
- Professinal service team and special after sale team
- Fast response about all questions from clients
- Design based on your specific requirements
Our service
- Competitive factory price
- Delivery on time
- Excellent after service
Get a quote
Frequently Asked Questions
Q：Are you manufacturery or trade company?
A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.
Q: Do you offer warranty on your products?
A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
Q: How is your quality control?
A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.
Q: How long is your delivery time?
A: 1-5days for the products in stock； regular order delivery in 2-3weeks.
Q: After Services
A:(1) Our sales team will response for your question within 24 hours (Holidays included).
(2) Technical Support will be available in any time.
(3)Free replacement will provide once the failure confirmed caused by our product quality.
Q:Methods of Payment
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.
Q: Do you offer OEM service?
A:Yes, we can offer OEM service if you have regular requirement.
Q: Where did you export ?
A:Till 2022 we have exported to 50+ countries.
