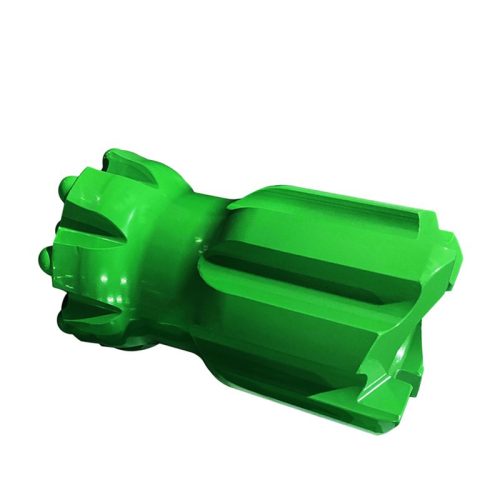

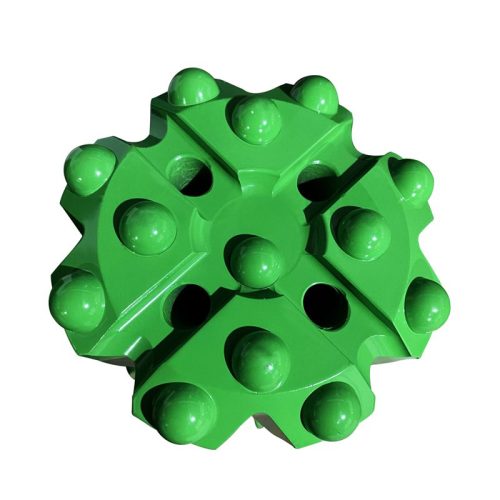

T-WIZ60-115mm Retrac Button Bit

Mining Parts T-WIZ60-115mm Thread Retract Rock Drill Button Bit

Material	High strength alloy steel and tungsten carbide
Processing Type	Forging
Application	Mining / Quarrying / quarrying / Construction
Advantage	Lower unit drilling cost
Color	Green, Gold, Black or based on customer requirements.
Formation	Soft , Medium , Hard , Very hard
Button bit shape	Spherical, Ballistic,Conical
Face shape	Flat shape and Drop-center shape
Body Type	Normal type and retract type
Thread connection	R25, R28, R32, R38, T38, T45, T51, ST58, GT60
Certification	ISO

Product Description

Retractable threaded button bits in deep hole drilling operations, with high flatness, good stability, can meet the needs of large aperture use, widely used in underground mining, open-pit mining, hydropower engineering, quarry field and other engineering construction.

Product Code and Brief Description	Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
T-WiZ60 Retrac Button Bit,	95	3 3/4	8×15	5×13	40°	4	–	6.5
Spherical Buttons
T-WiZ60 Retrac Button Bit,	102	4	8×16	5×13	30°	4	–	8
Spherical Buttons
T-WiZ60 Retrac Button Bit,	115	4 1/2	8×16	5×15	35°	4	–	9.8
Spherical Buttons
T-WiZ60 Retrac Button Bit,	127	5	8×16	5×15	40°	4	–	12
Spherical Buttons
T-WiZ60 Retrac Button Bit,	140	5 1/2	10×16	9×15	40°	4	–	15
Spherical Buttons
T-WiZ60 Retrac Button Bit,	152	6	16×16	4×15	35°	4	–	18
Spherical Buttons

Competitive Advantage

This type of bit is well known for its wear resistance on medium-hard to hard rock formations
Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture
Widely used drifting and tunneling
Bit face design is ideal for medium-hard to hard rock formations

Quick detail of retract button bit:

Widely used drifting and tunneling
Bit face design is ideal for soft to medium rock formations
With retrac wings to help guide the bit in and out of the hole
Effective in straight hole drilling

Our service

Competitive factory price
Delivery on time
Excellent after service

Get a quote

Frequently Asked Questions

Q：Are you manufacturery or trade company?

A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.

Q: Do you offer warranty on your products?

A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.

Q: How is your quality control?

A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.

Q: How long is your delivery time?

A: 1-5days for the products in stock； regular order delivery in 2-3weeks.

Q: After Services

A:(1) Our sales team will response for your question within 24 hours (Holidays included).

(2) Technical Support will be available in any time.

(3)Free replacement will provide once the failure confirmed caused by our product quality.

Q:Methods of Payment

A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.

Q: Do you offer OEM service?

A:Yes, we can offer OEM service if you have regular requirement.

Q: Where did you export ?

A:Till 2022 we have exported to 50+ countries.
